NDK 2.1 PFO documentation: What image URL should be used for "migrate-job.yaml"?

  • May 25, 2026
  • 0 replies
  • 13 views

anhpc

https://portal.nutanix.com/page/documents/details?targetId=Nutanix-Data-Services-for-Kubernetes-v2_1:top-configuring-pfo-t.html#:~:text=Configure%20the%20migrate%2Djob%20YAML%20with%20the%20names%20of%20the%20secrets%20created%20in%20the%20previous%20steps%20and%20the%20location%20of%20the%20Kubernetes%20job%20image.



Hi everybody,

I am following the NDK 2.1 documentation for Planned Failover:

Configuring and Running Planned Failover

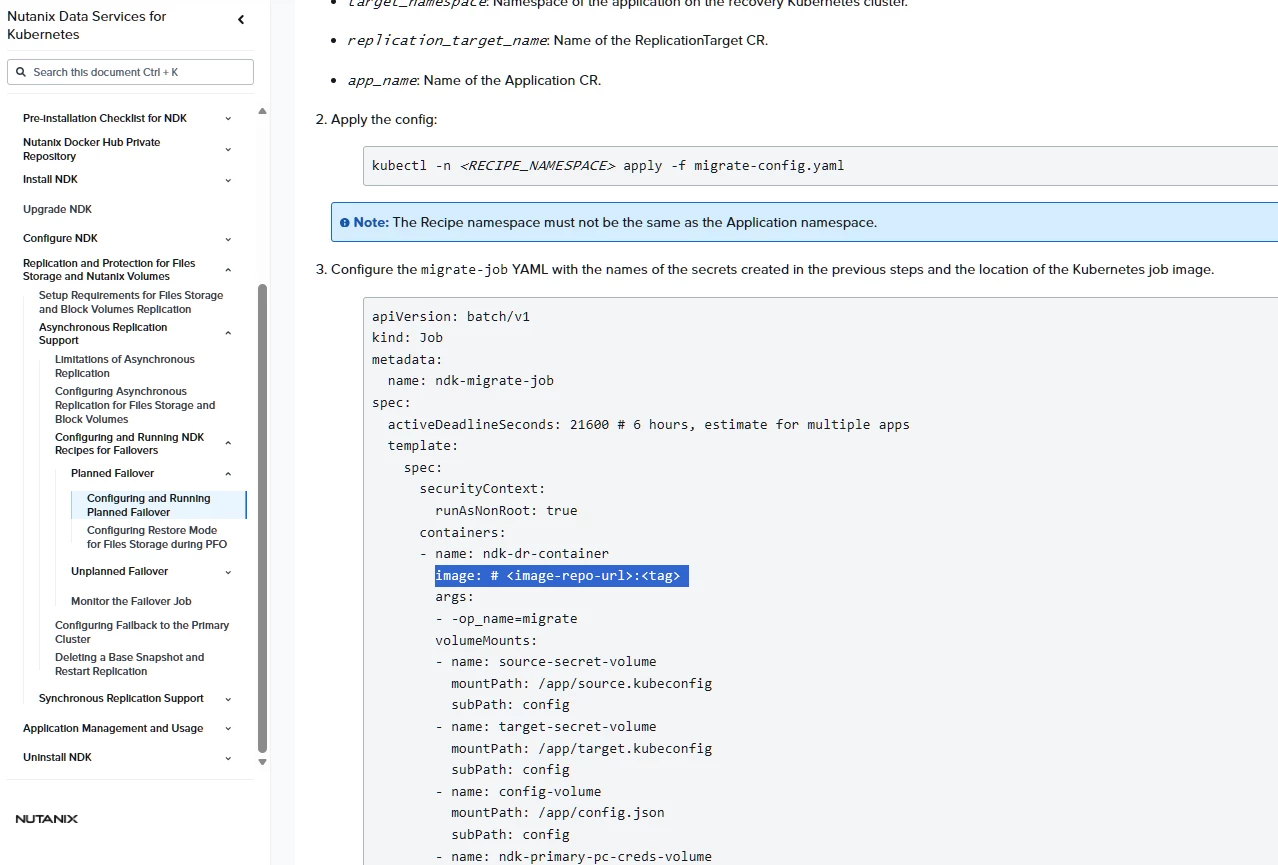

In step 3, Configure the migrate-job YAML, the sample YAML contains this placeholder:

containers:
- name: ndk-dr-container
image: # <image-repo-url>:<tag>

I am not sure what image URL should be used here for the NDK recipe job.

My environment is non-air-gapped. I already created the Docker registry secret using the Nutanix Docker Hub access token:

kubectl -n ndk-recipes create secret docker-registry ndk-recipe-pull-secret \
--docker-server=https://index.docker.io/v1/ \
--docker-username=nutanixndk \
--docker-password="<REDACTED_ACCESS_TOKEN>" \
--docker-email="<my-email>" \
--save-config \
--dry-run=client -o yaml | kubectl apply -f -

The secret was created successfully:

NAME                     TYPE                             DATA
ndk-recipe-pull-secret kubernetes.io/dockerconfigjson 1

I tried using this image:

image: ndk/recipes:2.1.0

But the pod failed with the following error:

Failed to pull image "ndk/recipes:2.1.0":
failed to pull and unpack image "docker.io/ndk/recipes:2.1.0":
failed to resolve reference "docker.io/ndk/recipes:2.1.0":
pull access denied, repository does not exist or may require authorization:
server message: insufficient_scope: authorization failed

Could you please confirm the correct image URL and tag that should be used in migrate-job.yaml for NDK 2.1 Planned Failover in a non-air-gapped environment?

Also, is ndk/recipes:2.1.0 only the local image name used after loading ndk-2.1.0-recipes-img.tar from the air-gapped bundle, or is it supposed to be pullable from Docker Hub?

Thanks.
