Creating multiple LACP on AHV

Hi Affan,

Looking at what you are trying to achieve, you want to create 3x virtual switchs (or bridges), one for each of these lines:

1x 2 port Copper : Active-Backup e.g. br0-up

1x 2 port Fibre : Active-Active (balanced-tcp) in LACP 1 e.g. br0-up1

1x 2 port Fibre : Active-Active (balanced-tcp) in LACP 2 e.g. br0-up2

I personally prefer to set this up via GUI, On Prism Element → Settings → Network Configurations → Virtual Switch, you can easily a new VS, define it’s mtu and active-active state and select the ports you want to use for all hosts.

My recommendation would be to avoid assigning a Bridge/VS to an entire dual-port NIC, example (unless you are using RDMA, in that case you have to dedicated the whole NIC to the bridge/vs):
Instead of doing:

• fiber adapter 1 port1 and port2 → br1 (or vs1)
• fiber adapter 2 port1 and port2 → br2 (or vs2)

Do like this:

• fiber adapter 1 port1 and  fiber adapter 2 port1 → br1 (or vs1)
• fiber adapter 1 port2 and fiber adapter 2 port2 → br2 (or vs2)

This way if you have a NIC failure you won’t loose any of your VS entirely, you will have at least 1x active port on the remaining NIC/Adaptor. Also ensure they are cabled to different network switchs (nic1 port1 → sw1 and nic2 port1 → sw2).

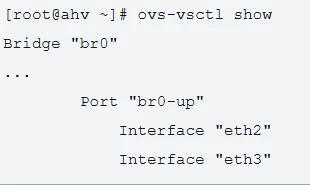

Regarding your code on step#3 you need multiple bridges, br0, br1 and br2. Each bridge will have 2x uplinks. something like this:
