2025-10-12 11:04:01,879Z imaging_step_cluster_init.py:1228 WARNING The Foundation IP is not in the CVM's subnet. Since the CVM by default does not allow RPCs from outside of its subnet, foundation will create ssh tunnel for cluster creation
2025-10-12 11:04:01,884Z imaging_step_cluster_init.py:1143 INFO Checking whether the CVMs are ready for cluster creation
2025-10-12 11:04:01,886Z imaging_step_cluster_init.py:1146 INFO [0/600s] attempt
2025-10-12 11:04:01,910Z imaging_step_cluster_init.py:1166 INFO Still waiting for CVMs 192.168.80.21, 192.168.80.22, 192.168.80.23 to report ready
2025-10-12 11:04:31,915Z imaging_step_cluster_init.py:1146 INFO [30/600s] attempt
.
.
.
2025-10-12 11:13:02,294Z imaging_step_cluster_init.py:1166 INFO Still waiting for CVMs 192.168.80.21, 192.168.80.22, 192.168.80.23 to report ready
2025-10-12 11:13:32,296Z imaging_step_cluster_init.py:1146 INFO [570/600s] attempt
2025-10-12 11:13:32,307Z imaging_step_cluster_init.py:1166 INFO Still waiting for CVMs 192.168.80.21, 192.168.80.22, 192.168.80.23 to report ready
2025-10-12 11:14:04,377Z imaging_step.py:164 ERROR Exception in running <ImagingStepClusterInit(<ClusterConfig(NXCLS) @8190>) @6880>
Traceback (most recent call last):
File "foundation\imaging_step_cluster_init.py", line 1239, in run
File "foundation\imaging_step_cluster_init.py", line 1173, in _wait_on_cluster
Exception: Timed out waiting for CVMs to come up
During handling of the above exception, another exception occurred:
Traceback (most recent call last):
File "foundation\imaging_step.py", line 160, in _run
File "foundation\imaging_step_cluster_init.py", line 1244, in run
Exception: Failed while waiting for cvms to come up before cluster creation.Error: Timed out waiting for CVMs to come up
Exception: Failed while waiting for cvms to come up before cluster creation.Error: Timed out waiting for CVMs to come up
2025-10-12 11:14:04,381Z imaging_step.py:123 DEBUG Setting state of <ImagingStepClusterInit(<ClusterConfig(NXCLS) @8190>) @6880> from RUNNING to FAILED
2025-10-12 11:14:04,387Z imaging_step.py:123 DEBUG Setting state of <ImagingStepClusterPcRegistration(<ClusterConfig(NXCLS) @8190>) @66d0> from PENDING to NR
2025-10-12 11:14:04,390Z imaging_step.py:182 WARNING Skipping <ImagingStepClusterPcRegistration(<ClusterConfig(NXCLS) @8190>) @66d0> because dependencies not metFoundation Type: Portable Foundation running on Windows
AHV version used: 10.3.0.2
AOS version used: 7.3.0.7
Switch Used: Flat switch connected to the shared IPMI ports of the three nodes
Laptop Network Configuration: Two IP addresses — one in the CVM and host subnet, and another in the IPMI subnet.
Note that: I was able to ping and access all CVMs via SSH.

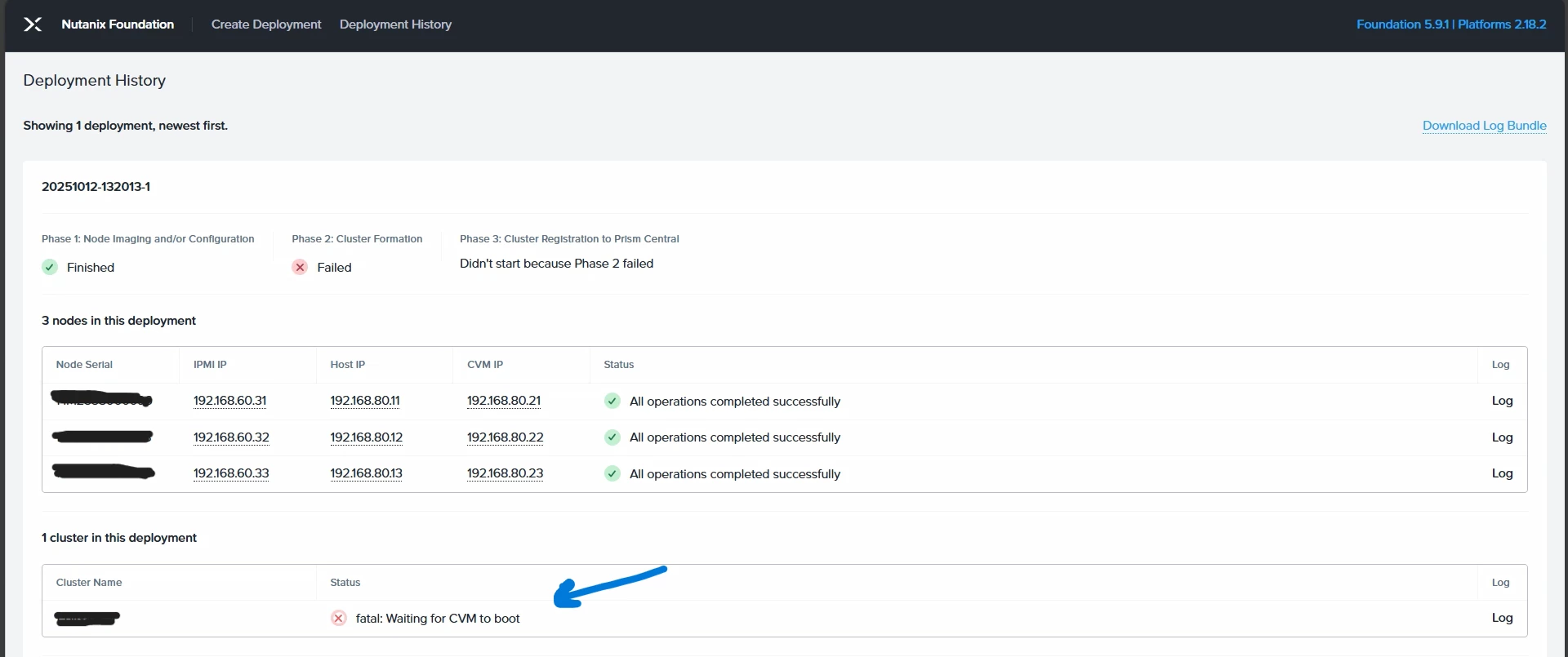

I’ve attached the cluster creation logs and a screenshot of the Foundation interface.
Could you please assist in identifying the cause of this error?
